F-WX30-8P10 360° rotating flange slip ring, the product adopts an integrated structural design and injection molding, it has excellent performance in both pressure resistance and toughness, 8 circuit channels, suitable for production line automation and other equipment requirements.
F-WX30-8P10 360° rotating flange slip ring product features:
1. 360° signal current transmission: keep the current and signal connected in the case of rotation.
2. Military-grade gold-plated contacts: The contact resistance fluctuation of the super-hard gold plating is less than 0.3%, and the signal transmission stability is good.
3. Low torque design: The rotation resistance is ≤2mN·m, making the rotation smoother, and the rotation speed can reach 150rpm.
4. Flange-type integrated structure: IP51 protection is achieved, and the service life can reach 2 million revolutions.
5. Extremely simplified installation: Flange installation is simpler and more efficient.
F-WX30-8P10 360° rotating flange slip ring Performance parameters
| Parameter name | Parameter Value |
| Dielectric strength | 300VCA@50Hz,60s |
| Insulation resistance | ≥500MΩ/300VDC |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～240VDC/VAC |
| Wire Specifications | 17#AWG Teflon wire |
| Wire length | Rotor 250mm; stator 250mm (reference value, specific size depends on the actual specifications) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 2 million rpm |
F-WX30-8P10 360° rotating flange slip ring Product Dimensions

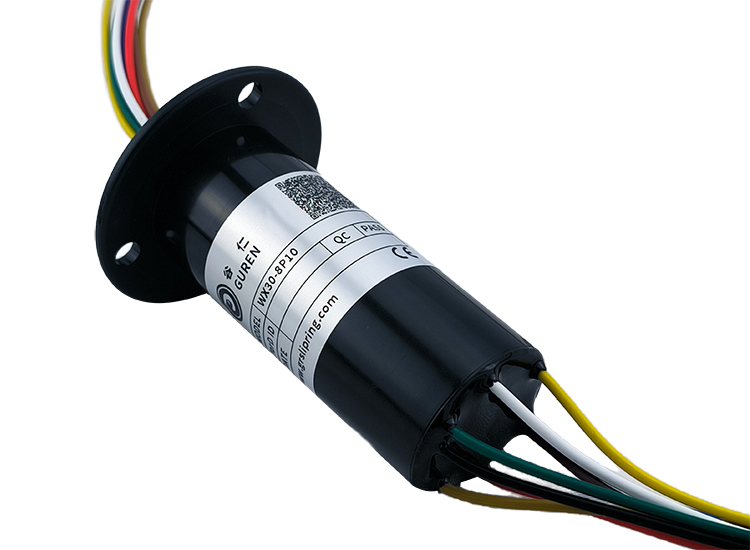

F-WX30-8P10 360° rotating flange slip ring Product images
F-WX30-8P10 360° rotating flange slip ring application
F-WX30-8P10 360° rotating flange slip ring is mainly used in drones, stabilizers, smart homes, security monitoring, photography and videography, robots, test instruments, turntables and automation equipment.
