IP51 6mm Thickness PCB Pancake Slip Ring Fiber Shrapnel Brush Technology

Name: IP51 6mm Thickness PCB Pancake Slip Ring Fiber Shrapnel Brush Technology
Brand: GuRen
Price: 19 USD

Brand Name : GuRen

Model Number : BC38-6

Certification : ISO9001.CE.RoHS

Place of Origin : china

MOQ : 1

Price : ＄19-199

Payment Terms : L/C,D/P,T/T

Supply Ability : 1K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Inner Size : 31mm

Working Temperature : -30°C to 80°C

Through Bore Size : 30 mm

Ip Protection Grade : IP51

Working Speed : 0-100rpm

Circuits : 1~17circuits

Contact Now

Fiber Shrapnel Brush Technology 6mm Thickness PCB Pancake Slip Ring

The pancake slip ring is an ultra-thin conductive solution specifically engineered for equipment with height restrictions requiring lateral space expansion. With a standard thickness of 6mm (minimum 5mm), it delivers exceptional performance in compact installations.

Key Features

Ultra-thin profile: 6mm standard thickness (5mm minimum available)
Advanced fiber spring brush technology ensures reliable contact with minimal friction
Exceptionally low contact resistance with zero friction debris
Capable of simultaneous precision signal and power transmission
Precious metal spring contacts for superior stability and reliability
Ideal for applications with strict space constraints

Custom configurations available for all PCB slip rings, ultra-thin conductive rings, and circuit board slip rings.

Technical Specifications

Mechanical Specifications		Electrical Specifications
Speed	100rpm	Voltage	220V DC/VDC
Working life	3 million rpm	Insulation resistance	≥500MΩ/300VDC
Operating humidity	0～85%RH	Wire Specifications	AWG18# Silicone wire
Operating temperature	-30°C to 80°C	Dielectric strength	100VAC@50Hz,60S
Contact material	Precious Metals	Dynamic resistance change	<0.01Ω
Shell material	Aluminum Alloy	Aperture size	25.4mm
Rotation torque	0.01N.m+0.03N.m/6 channels	Thickness	6mm
Protection level	IP40	Number of routes	2-12

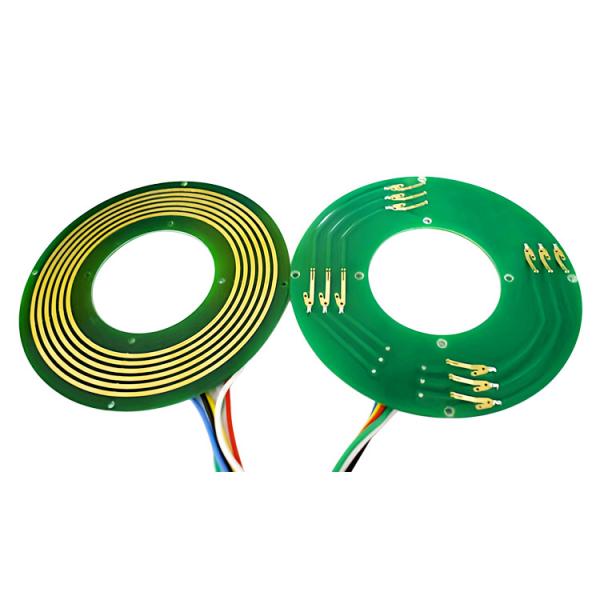

Product Image

IP51 6mm Thickness PCB Pancake Slip Ring Fiber Shrapnel Brush Technology

Applications

Designed for equipment with limited installation space, including:

Security monitoring pan/tilt systems
Industrial robot joints
Automated rotary stations
Test and measurement equipment
