The GS1233 series ultra-small, high-speed rotary slip rings feature a compact design with a 12.7mm center hole, making them suitable for space-constrained miniature rotary equipment. Their combination of alloy brushes and gold-plated rings ensures stable conductivity at speeds up to 2000rpm, making them suitable for simple signal and low-voltage power transmission.
GS1233 series ultra-small high-speed rotary slip rings product features

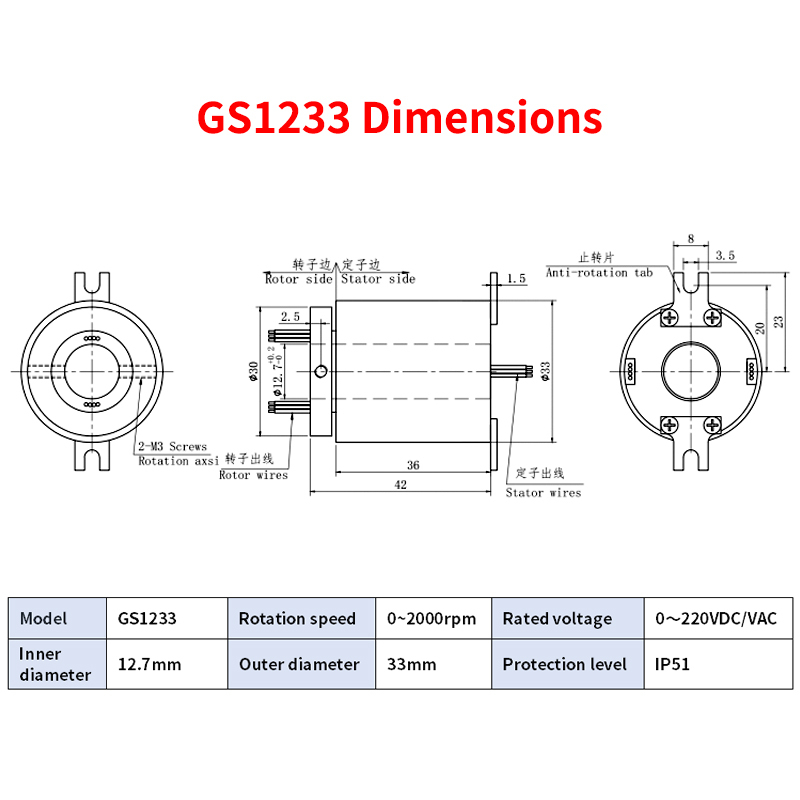

1. With a center hole of 12.7mm and an outer diameter of 33mm, the compact design makes it suitable for installations in space-constrained environments.
2. Its maximum speed reaches 2000rpm, meeting the electrical conductivity requirements of medium-speed rotating equipment.
3. Its power line insulation strength reaches 300VCA @ 50Hz/60s, and its insulation resistance is ≥ 500MΩ/300VDC, matching the insulation performance of signal lines for high safety.
4. It uses AF200-26AWG Teflon cable, with a default length of 250mm that can be adjusted as needed, allowing for customized specifications based on load conditions.
5. Its torque is only 0.1N.m + 0.03N.m/6-way, reducing equipment drive load and ensuring smoother operation.
GS1233 series ultra-small high-speed rotary slip rings parameters
|
Mechanical Specifications
|
Electrical Specifications
|
|
Speed
|
2000rpm(The maximum customizable speed is 12000)
|
Voltage
|
0-220VAC/VDC
|
|
Operating temperature
|
-30℃～+80℃
|
Insulation resistance
|
≥500MΩ/300VDC
|
|
Operating humidity
|
0～85%RH
|
Wire Specifications
|
Teflon wire
|
|
Contact material
|
Imported gold-plated ring
|
Dielectric strength
|
200VAC@50Hz,60S
|
|
Shell material
|
Aluminum Alloy
|
Dynamic resistance change value
|
<0.01Ω
|
|
Rotation torque
|
0.05N.m+0.02N.m/6 channels
|
|
|
|
Protection level
|
IP51
|
GS1233 series ultra-small high-speed rotary slip rings applications
It is mainly used for spindles of high-speed machining centers, centrifugal separation equipment, aircraft engine testing, high-end medical equipment, and specific national defense and scientific research equipment.
