GXMMS-7 photoelectric signal rotary joint adopts metal shielding design to reduce external interference and ensure signal purity. It is compatible with single-mode and multi-mode optical fibers, supports customization of various pigtail parameters and connector forms, has a wide broadband coverage range, and is suitable for complex equipment that requires multi-signal parallel interaction, such as multi-interface monitoring systems and robot clusters.
GXMMS-7 photoelectric signal rotary joint Features:
1. The 7-channel design reserves sufficient signal transmission channels for medium and high-complexity equipment, which is convenient for future function expansion and performance improvement.
2. The insertion loss at room temperature is ≤4.0dB. Even in multi-channel transmission, the signal loss can be kept low to ensure stable signal strength.
3. The broadband covers ±50nm, supports the simultaneous transmission of multiple wavelength signals, and greatly improves the system compatibility and flexibility.
4. The pigtail provides ∅0.9mm/∅2.0mm/∅3.0mm packaging and armor customization to adapt to different harsh installation environments and usage requirements.
5. The estimated life span is >100 million revolutions, and the operating temperature range of -20℃～+60℃ ensures long-term and stable operation.
GXMMS-7 photoelectric signal rotary joint Parameters
| 2-31 channel fiber optic slip ring parameters |
| Broadband | ±50nm |
| Line length | 1.2m (Customizable) |
| Working wavelength | 1310 or 1550(SM);850 or 1310(MM) |
| Insertion loss (room temperature) | ≤4.0dB |
| Insertion loss fluctuation | ≤2.0dB |
| Return loss | ≥40dB(SM) |
| Power handling | ≤23dBm |
| Withstand tension | ≤12N |
| Speed | 0～300rpm(Higher speed can be customized) |
| Estimated lifespan | ＞100 million rpm |
| Operating temperature | -20℃～+60℃ |
| Storage temperature | -45℃～+85℃ |
| Protection level | IP54(Customizable IP65,IP67) |

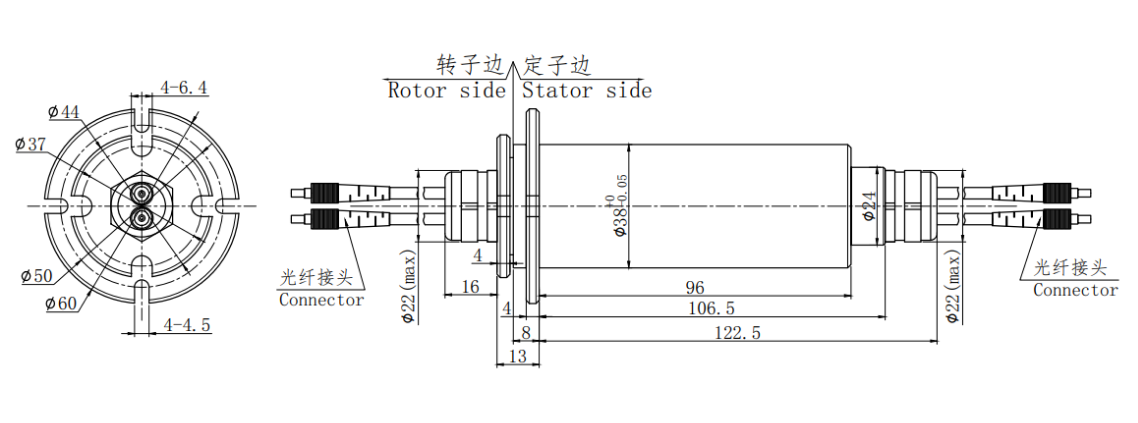

GXMMS-7 photoelectric signal rotary joint Dimensions
GXMMS-7 photoelectric signal rotary joint Applications
Suitable for installation on drones, artificial intelligence, monitoring equipment and other products
