50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring

Name: 50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring
Brand: GuRen
Price: 19 USD

Quality 50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring for sale

Brand Name : GuRen

Model Number : W1M50S-D

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : ≤50A

Peak current : 65A

Length : 56mm

width : 23.8mm

Speed : 1500rpm

Housing : M8

Contact Now

50A Current, Corrosion-Resistant Electric Slip Ring

Product Attributes

Attribute	Value
Conventional current	≤50A
Peak current	65A
Length	56mm
Width	23.8mm
Speed	1500rpm
Housing	M8

Product Description

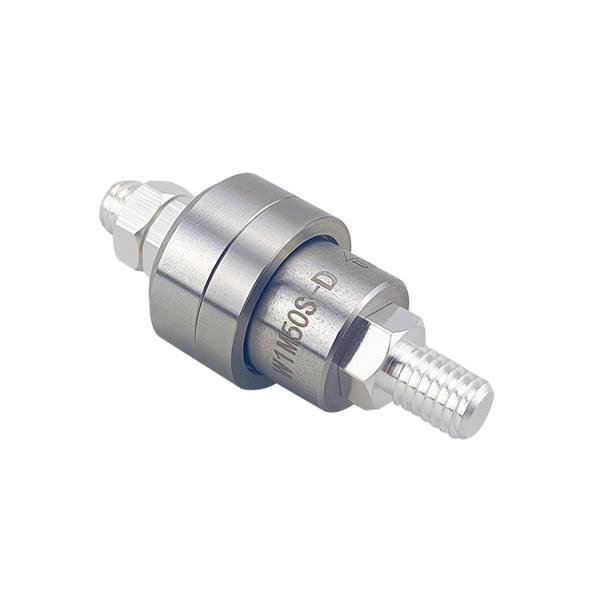

W1M50S-D corrosion-resistant electric slip ring is a high-speed slip ring developed for complex environments. The speed can reach 1500 revolutions per minute. It adopts three layers of protection to better resist the erosion of corrosive liquids.

Product Features

Adopt independent outer protective structure, strong corrosion resistance
High speed support, maximum speed is 1500RPM per minute
Ultra-low resistance, making the transmission energy efficiency ratio higher
Integrated structure design, lock installation, making installation and maintenance easier and faster

Product Parameters

Parameter Name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm (See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G***** CM (See specific model)

Product Size Drawing

50A Current Electric Slip Ring Corrosion Resistant 1500rpm High Rpm Slip Ring

Product Pictures

Application Scenarios

Suitable for electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
