320A High Power Slip Ring Liquid Slip Ring Low Resistance Low Friction M12 Stud

Name: 320A High Power Slip Ring Liquid Slip Ring Low Resistance Low Friction M12 Stud
Brand: GuRen
Price: 19 USD

Quality 320A High Power Slip Ring Liquid Slip Ring Low Resistance Low Friction M12 Stud for sale

Brand Name : GuRen

Model Number : A1H35S

Certification : ISO9001.CE

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Conventional current : 320A

Peak current : 350A

Length : 79.3mm

width : 31.6mm

Stud : M12

Speed : 1000rpm

Contact Now

A1H35S high power liquid electric slip ring, 316L stainless steel shell, copper + nickel silver guide column, maximum current up to 350A. You can choose mercury or gallium alloy packaging liquid.

A1H35S high power liquid electric slip ring Product features

1. Less than 1mΩ resistance value, defining a new standard for conductivity.
2. Thousands of revolutions of high speed rotation without spark interference.
3. 320A continuous overcurrent without heating.
4. 316 stainless steel anti-corrosion metal package.
5. Thread lock for quick installation in 3 minutes.

A1H35S high power liquid electric slip ring Product parameters

Parameter name	Parameter Value
Insulation resistance	>35 mΩ
Contact resistance	＜1mΩ
Rated voltage	0～400VDC/VAC
Maximum frequency	200MHz
Working current	10-1500rpm(See the specific model, can be customized)
Operating temperature	-30℃～+60℃
Operating humidity	0～85%RH
Protection level	IP51
Shell material	Stainless steel/aluminum alloy
Rotational torque	35-2000G·CM(See specific model)

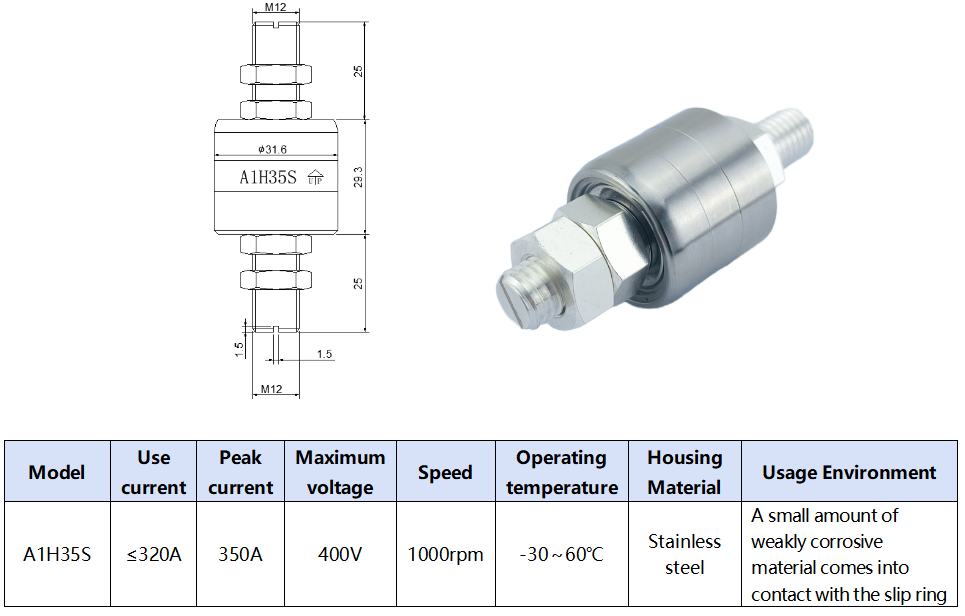

Product size drawing

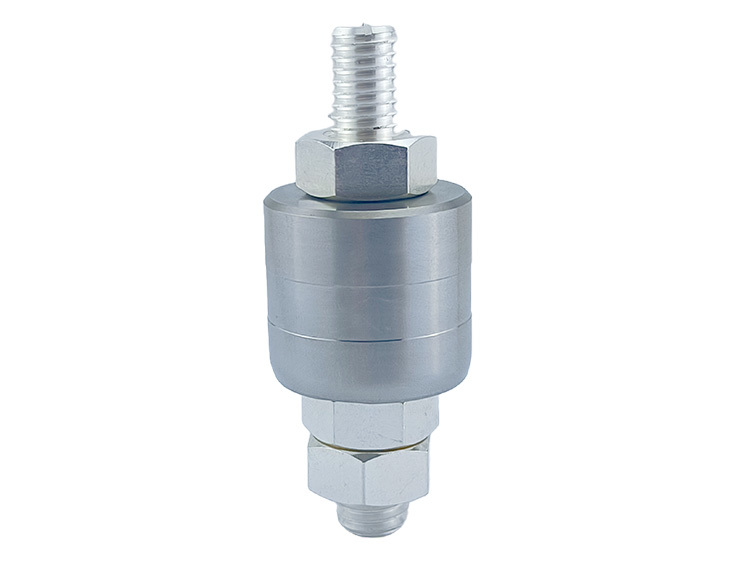

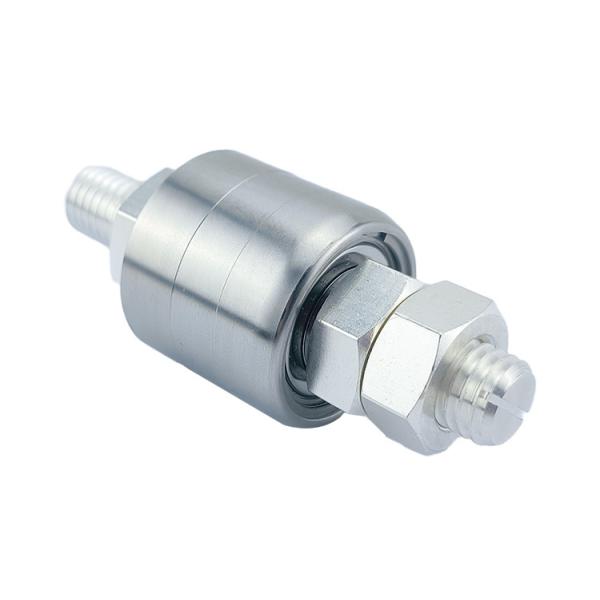

A1H35S high power liquid electric slip ring Product Pictures

A1H35S high power liquid electric slip ring Application scenarios

Applicable to electroplating (gold plating, silver plating, copper plating, nickel plating, palladium plating, tin-lead plating), electrolysis, welding and other industries.
