Q4P03-3099 through-hole air rotary joint, integrated compressed air/vacuum/liquid channels; 30mm center hole solves through-hole limitations, adapts to G3/8" interface air pipe, maintains 0.5N·m low torque at 300RPM.
Q4P03-3099 through-hole air rotary joint Product Features
1. Four-way rotary joint, center hole diameter 30mm, outer diameter 99mm, equipped with G3/8" threaded interface, suitable for 10-12mm air pipe, moderate size.
2. Supports connection of 6mm or 8mm standard air pipe, suitable for medium flow requirements, and can transmit a variety of gas media.
3. The interior adopts special coating, which is resistant to chemical mixed gas corrosion, has excellent sealing and extends service life.
4. The maximum speed can reach 300RPM, with a designed service life of 20 million revolutions, which is durable and suitable for industrial environment.
Q4P03-3099 through-hole air rotary joint Product Parameters
| Parameter name | Parameter Value |
| Transmission medium | Gas (liquid can be customized) |
| Working life | 20 million revolutions (reference value) |
| Maximum speed | 300RPM |
| Overpressure | -90KPa～1MPa or vacuum |
| Operating temperature | -30℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP51 |
| Shell material | Aluminum Alloy |
| Rotational torque | 0.5N.m(reference value, torque and number of channels are positively correlated) |

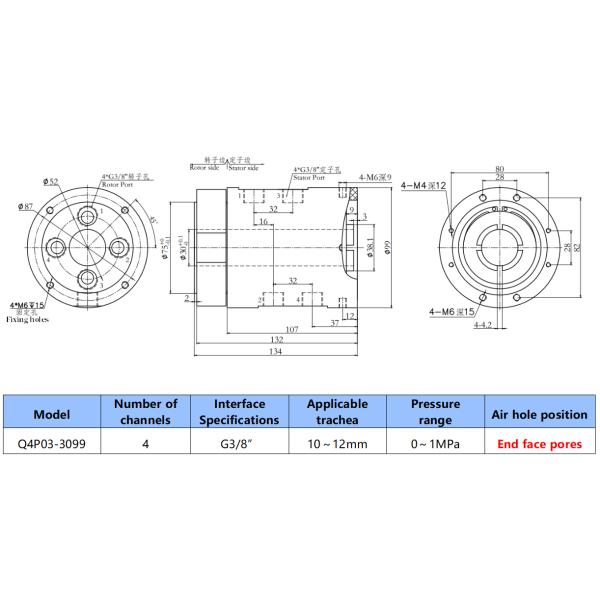

Q4P03-3099 through-hole air rotary joint dimensions
Q4P03-3099 through-hole air rotary joint Product images
Q4P03-3099 through-hole air rotary joint application scenarios
It is mainly used in occasions where 360-degree continuous rotation is required and air pressure, vacuum, power supply and signal cannot be interrupted: such as various non-standard automation equipment, lithium battery equipment, mobile phone testing equipment, high-end mobile phone equipment, various laser equipment, coating machines, diaphragm coating equipment, packaging film equipment for soft-pack batteries, laminating equipment, electronic semiconductor industrial automation equipment; optoelectronic flat panel display (LCD/LCM/TP/OLED/PDP) industrial automation equipment, testing equipment, rotary workbench, wind power equipment, engineering machinery, rotary filling machine, capsule filling machine, AGV lifting platform, etc.
