300rpm 360 Rotation 6 Channels Air Rotary Joint Independent Air Channel

Name: 300rpm 360 Rotation 6 Channels Air Rotary Joint Independent Air Channel
Brand: GuRen
Price: 19 USD

Quality 300rpm 360 Rotation 6 Channels Air Rotary Joint Independent Air Channel for sale

Brand Name : GuRen

Model Number : Q6PM5

Certification : ISO9001.CE.RoHS

Place of Origin : china

MOQ : 1

Price : ＄19-199

Payment Terms : L/C,D/P,T/T

Supply Ability : 1K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Contact Now

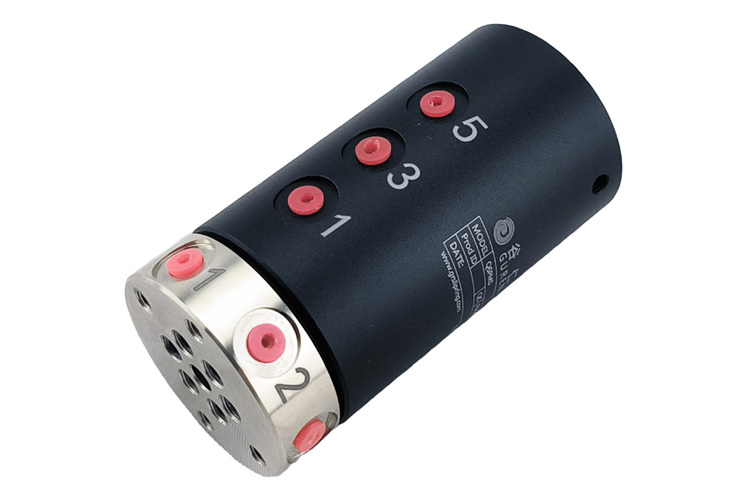

Q6PM5 Gas Rotary Joint - 300RPM Speed, 360° Rotation, 6 Independent Air Channels

The Q6PM5 gas rotary joint is a high-performance dual-channel rotary joint capable of 360° continuous rotation to transmit 6-way compressed air, steam, vacuum, and other gas media. Compatible with 4~6mm gas pipes for versatile industrial applications.

Key Features

6-way rotary joint with 5mm center hole, 38mm outer diameter, and M5 thread
Supports integration of power lines, signal lines, Ethernet, USB, industrial bus, control lines, and solenoid valves
Compatible media: compressed air, hydrogen, nitrogen, chemical mixed gases, and vacuum
High-speed operation up to 300 RPM with service life of 20 million revolutions

Technical Specifications

Parameter	Value
Transmission Medium	Gas (liquid options available)
Working Life	20 million revolutions (reference)
Maximum Speed	300 RPM
Pressure Range	-90KPa～1MPa or vacuum
Operating Temperature	-30℃～+80℃
Operating Humidity	0～85% RH
Protection Level	IP51
Shell Material	Aluminum Alloy
Rotational Torque	0.5N.m (varies by channel count)

Product Dimensions

300rpm 360 Rotation 6 Channels Air Rotary Joint Independent Air Channel

Industrial Applications

Designed for applications requiring 360° continuous rotation without interruption of air pressure, vacuum, power supply, or signal transmission. Ideal for:

Non-standard automation equipment and laser systems
Lithium battery production and mobile phone testing equipment
Coating machines, laminating equipment, and bonding systems
Electronic semiconductor manufacturing and testing equipment
Optoelectronic display production (LCD/LCM/TP/OLED/PDP)
Specialized packaging film equipment for soft-pack batteries
