Product Overview
2-channel water slip ring, the product is a special slip ring for water flow, using a special O-ring, with good anti-leakage performance. The inner diameter of the slip ring is 48.5mm and the outer diameter is 120mm. It adopts an oxidized aluminum alloy shell and can be connected to a 12mm air pipe. The maximum water pressure can reach 0.5MPa and the design speed is 60 revolutions per minute.
Key Features
1. Dual-channel design.
Provides two independent fluid channels, supporting a maximum water pressure of 0.5 MPa.
The interface is compatible with standard 12mm Φ water pipes, ensuring easy connection and high flow efficiency.
2. Excellent sealing performance.
Utilizing a dedicated O-ring and sealing structure, it offers reliable leak-proof performance and is suitable for media such as water and coolant.
The oxidized aluminum alloy housing is corrosion-resistant and provides excellent heat dissipation, extending the product's service life.
3. Hollow design ensures excellent flowability.
With an inner diameter of 48.5 mm and an outer diameter of 120 mm, the hollow structure facilitates pipeline integration.
The maximum design speed is 60 rpm, meeting medium and low-speed rotary transmission requirements.
4. Wide application.
It is widely used in applications such as rotary interfaces for cooling equipment, spindle water cooling systems for CNC machine tools, rotary nozzles for industrial cleaning machines, and fluid circulation interfaces for testing instruments.
Technical Parameters
| Parameter | Value |
| Transmission medium | Gas (liquid available by customization) |
| Working life | 20 million revolutions (reference value) |
| Maximum speed | 60 RPM |
| Pressure range | 0.5MPa |
| Operating temperature | -30℃ to +80℃ |
| Operating humidity | 0-85% RH |
| Protection level | IP51 |
| Shell material | Aluminum Alloy |
| Rotational torque | 0.5N.m (reference value, torque increases with channel count) |
Product Dimensions

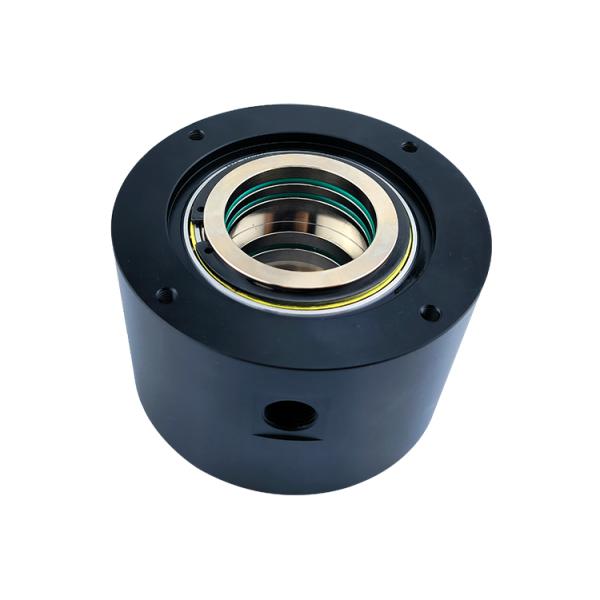

Product images
Application Scenarios
Ideal for applications requiring 360-degree continuous rotation with uninterrupted gas pressure, vacuum, power, and signal transmission. Common uses include:
- Non-standard automation equipment
- Lithium battery and mobile phone testing equipment
- Laser equipment and coating machines
- Packaging film equipment for soft-pack batteries
- Electronic semiconductor industrial automation
- Optoelectronic display manufacturing equipment
- Rotary worktables and wind power equipment
- AGV lifting platforms and capsule filling machines
