8 Way 1A OD 6.5mm Miniature Slip Ring Aluminum Alloy Shell Low Resistance For Stabilizer

Name: 8 Way 1A OD 65mm Miniature Slip Ring Aluminum Alloy Shell Low Resistance For Stabilizer
Brand: GUREN
Price: 19 USD

Brand Name : GUREN

Model Number : WX6.5-8PS

Certification : ISO9001.CE.ROHS

Place of Origin : China

MOQ : 1

Price : ＄19-199

Payment Terms : D/A,D/P,T/T

Supply Ability : 5K units/week

Delivery Time : 3 weeks ARO

Packaging Details : Standard/On Request

Outer Diameter : 0.65cm

Length : 1.18cm

Circuits : 8-way

Weight : 70g

Vibration : 5-10g

Wire Gauge : AWG 30

Contact Now

8-way 1A OD 6.5mm Miniature Collector Ring

Product Attributes

Attribute	Value
Outer Diameter	0.65cm
Length	1.18cm
Circuits	8-way
Weight	70g
Vibration	5-10g
Wire Gauge	AWG 30

Product Description

WX6.5-8PS is a 6.5mm outer diameter 8-way 1A miniature collector ring. The product adopts gold-gold contact and military-grade super-hard gold plating technology, with low initial resistance and small fluctuation, which greatly extends the service life and reduces the total cost of use. It is specially designed for civilian/commercial equipment with reliability as the priority, and is durable.

Product Features

Provide 8 circuit channels, each channel can pass 1A current.
Aluminum alloy shell makes the product lighter and improves the product's compressive strength.
0.05N.m torque makes the product's rotation resistance smaller
500,000 revolutions service life

Technical Parameters

Parameter Name	Parameter Value
Dielectric strength	300VCA@50Hz,60s
Insulation resistance	≥300MΩ/300VDC
Dynamic resistance change value	＜10mΩ
Rated voltage	0～48VDC/VAC
Wire Specifications	AWG30# Teflon wire
Wire length	Rotor 150mm; stator 200mm (adjustable as required)
Operating temperature	-20℃～+80℃
Operating humidity	0～85%RH
Protection level	IP41
Shell material	Engineering Plastics
Rotational torque	0.05N.m,+0.01N.m/6-way
Service life	500,000 rpm

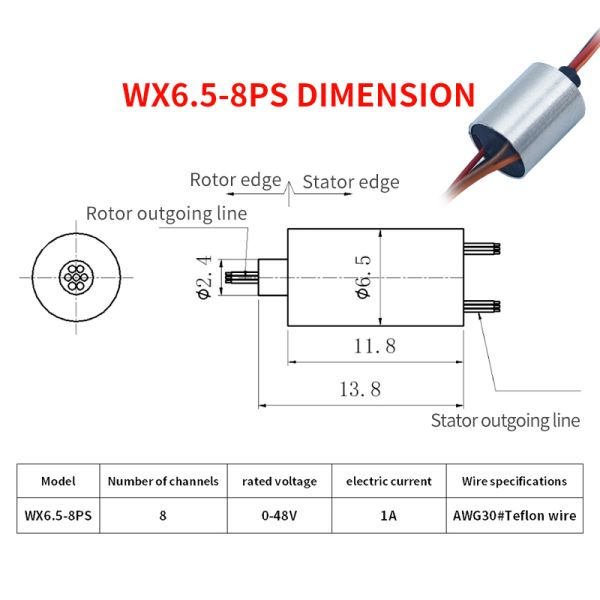

Product Size Drawing

8 Way 1A OD 6.5mm Miniature Slip Ring Aluminum Alloy Shell Low Resistance For Stabilizer

Applications

WX6.5-8PS micro collector ring is mainly used in equipment with narrow installation space requirements, such as:

Drones
Stabilizers
Model airplanes
Small aircraft
Micro robots
Small high-speed balls
Micro pan/tilts
Small measuring instruments
Electric toys
