The WX7.9-4PS low-power micro conductive ring adopts military-grade gold plating technology, and the thickness of the super-hard gold-gold contact is more than 1μm. Compared with conventional gold plating, the wear resistance is improved by 100%, and the service life can exceed 500,000 revolutions, which can help solve the difficulties of signal rotation transmission of micro devices.
product features
1. 4-way 1A, outer diameter 6.5mm, suitable for various small space occasions.
2. 0.058N·m micro torque, easy rotation without jamming.
3. Gold-gold contact points to ensure more stable current and signal transmission.
4. Flangeless design, higher space utilization.
parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 300VCA@50Hz,60s | |
| Insulation resistance | ≥300MΩ/300VDC | |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30# Teflon wire |
| Wire length | Rotor 150mm; stator 200mm (adjustable as required) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP41 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 500,000 rpm |
product size drawing

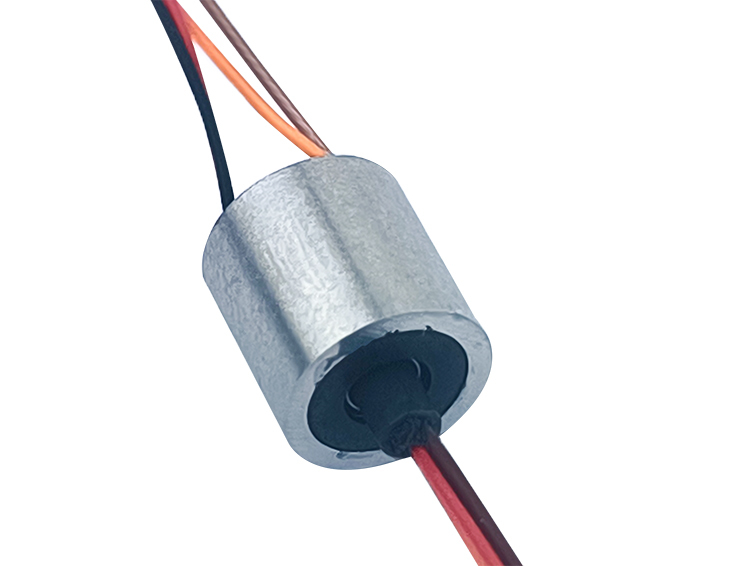

Product Pictures
Application
WX7.9-4PS low-power micro conductive rings are used in some consumer electronics, UAVs, stabilizers, aircraft models, small aircraft, micro robots, micro CCTV, small high-speed balls, micro PTZs, small measuring instruments and other industries, etc. Low-power micro conductive rings are also called special slip rings for UAVs, special slip rings for stabilizers, special slip rings for aircraft models, special slip rings for small aircraft, special slip rings for micro robots, etc.
