WX7.9-8PS capsule conductive slip ring, with a diameter of less than 8mm, can be directly embedded in the device housing. The gold-gold contact point is combined with the self-developed shockproof structure to stably transmit 0-24V weak control signals in spaces less than 5cm³, such as robot joints and endoscope rotating parts.
product features
1. Aluminum alloy shell package, the product outer diameter is only 7.9mm.
2. Gold-gold contacts + military plating to achieve stable transmission of current and signals.
3. Support port hot plug structure customization, more convenient installation.
4. Low resistance, low torque.
parameters
| Parameter name | Parameter Value |
| Power | Signal |
| Dielectric strength | 300VCA@50Hz,60s | |
| Insulation resistance | ≥300MΩ/300VDC | |
| Dynamic resistance change value | ＜10mΩ |
| Rated voltage | 0～48VDC/VAC |
| Wire Specifications | AWG30# Teflon wire |
| Wire length | Rotor 150mm; stator 200mm (adjustable as required) |
| Operating temperature | -20℃～+80℃ |
| Operating humidity | 0～85%RH |
| Protection level | IP41 |
| Shell material | Engineering Plastics |
| Rotational torque | 0.05N.m,+0.01N.m/6-way |
| Service life | 500,000 rpm |

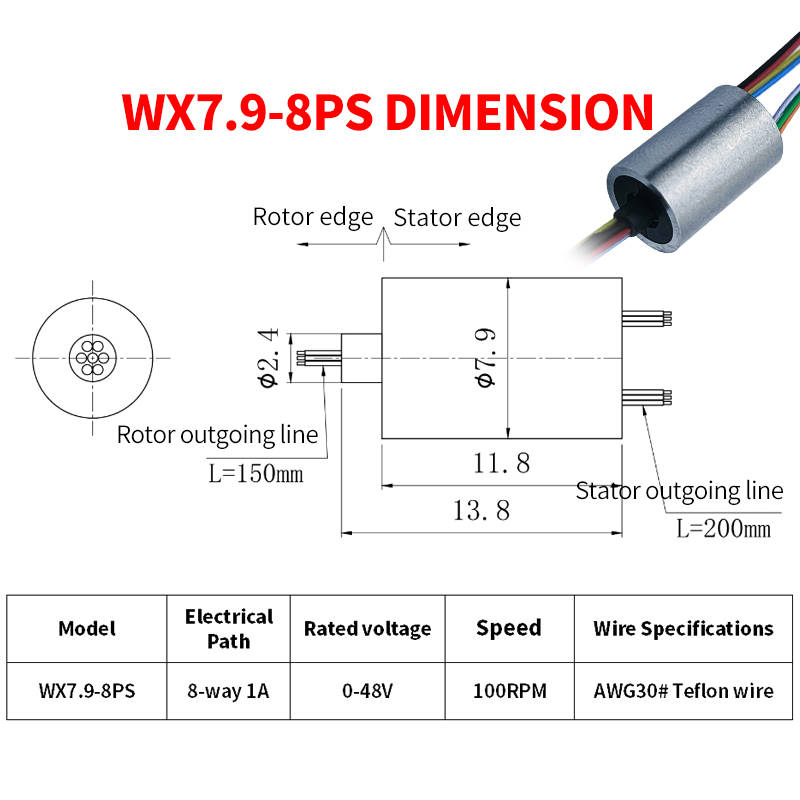

product size drawing

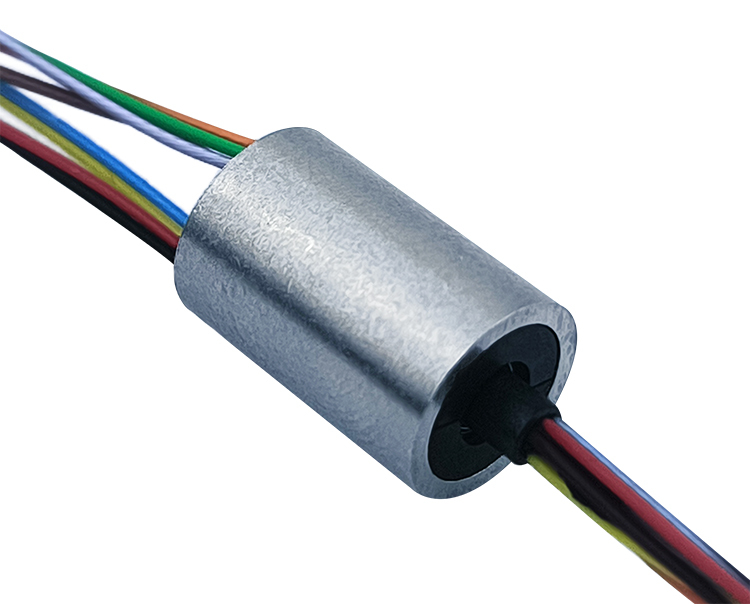

Product Pictures
Application
WX7.9-8PS capsule conductive slip ring is used in some consumer electronics, UAV, stabilizer, model aircraft, small aircraft, micro robot, micro CCTV, small high-speed ball, micro PTZ, small measuring instrument and other industries, etc. We also call capsule conductive slip ring special slip ring for UAV, special slip ring for stabilizer, special slip ring for model aircraft, special slip ring for small aircraft, special slip ring for micro robot and so on.
